A1200 Cap Map

Ahh… What the heck!

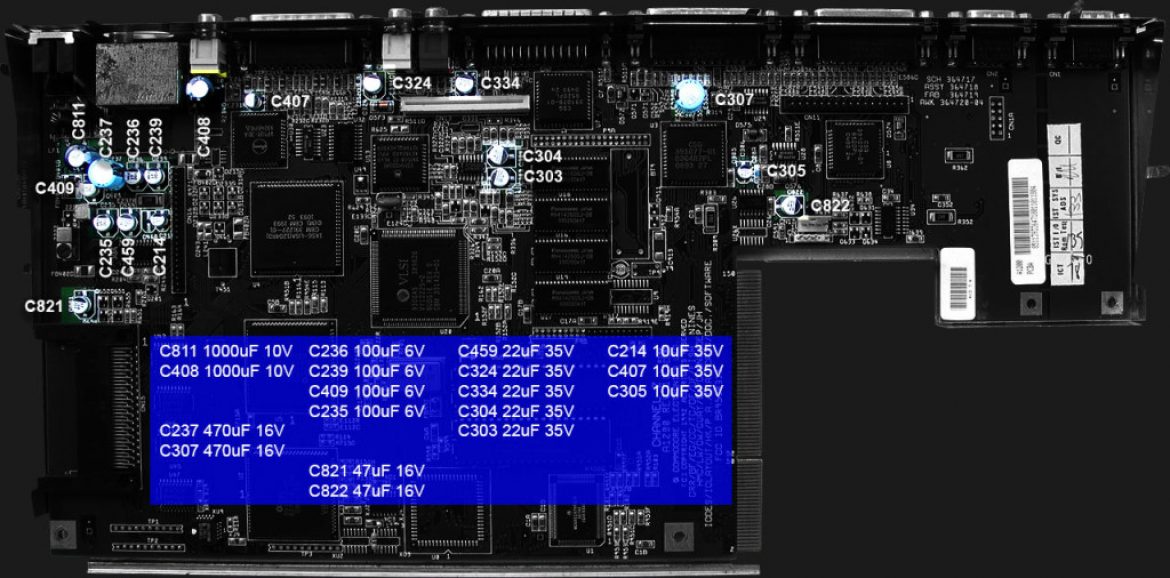

Since I could not find any good reference for the location of all the capacitors in a Amiga 1200 I decided to make my own. The result can be found below and I have also made a high resolution version of it that  can be seen as a text URL below the picture.

[imageeffect type=”lightbox” align=”aligncenter” width=”680″ height=”335″ alt=”” url=”https://www.ikod.se/wp-content/uploads/2019/04/a1200capactitors-v2.jpg” ]

Hi-Res Version

[imageeffect type=”lightbox” align=”aligncenter” width=”680″ height=”335″ alt=”” url=”https://www.ikod.se/wp-content/uploads/2019/04/a1200cap-pcb-stencil.png” ]

8
Comments
  1. Xolod says:

    On oiginal schema electrolytic capacitor C306 not C305. They are just next to the board signed.

    1. highpuff says:

      You are correct, C305 is a 0.22uF instead of 10uF. Will change it ASAP 🙂 Thanks for the tip.

      1. Loganix says:

        Hey, first of all great site and good work with the map. I’m looking at a A1200 R1 Schematic and I can see over at “AUDIO POWER”, C305 is marked 0.22uF next to the C306 marked 10uF. According to your map and when reading Console5 and some other site recommendations, they all state C305 10uF 35V.

        Shouldn’t it be 0.22uF as stated in the schematic?

        SOURCE:
        https://www.amigawiki.org/dnl/schematics/A1200_R1.pdf

        MIRROR:
        http://www.loganix.com/FILES/AMIGA/A1200_R1.pdf

        1. highpuff says:

          No, you are right. I must have been tired when I made these since it is not C305, it is C306 that is 10uF.

          Will change this ASAP.

        2. highpuff says:

          So, it is updated now. Thanks again for your hawk eyes 🙂

  2. Daryl says:

    Thanks a lot! just what I was looking for.

  3. Jani Mäkelä says:

    This was great! THX
