A1200 PWR

The X-Mas has just ended and I have some days off from work so why not continue with some of my projects.

To be able to feed my BPPC and BVision with extra juice I decided not to go with the “Floppy-Feed-Solution” and instead use a SFX PSU in my Amiga PSU and then connect cables directly after the filter to a distribution board. I do know that the following currents are fed by the PSU.

  • GND (Ground)
  • +5V
  • +12V
  • -12V

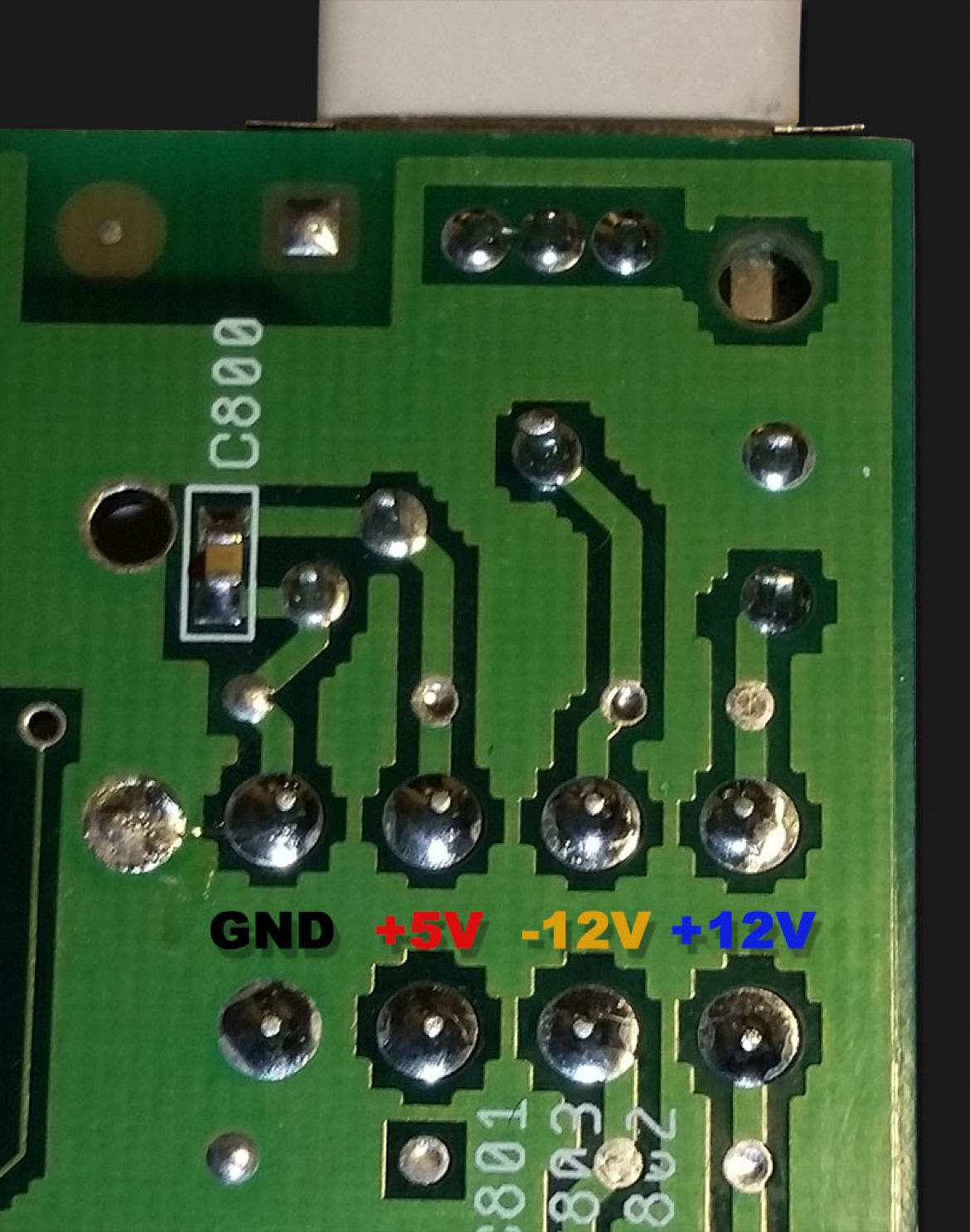

So while I was measuring the input, I took a picture and documented it for future reference. See the result below.

[imageeffect type=”lightbox” align=”aligncenter” width=”226″ height=”300″ alt=”” url=”https://www.ikod.se/wp-content/uploads/2015/12/pwr-mapping.jpg” ]

(Click to see larger version)

The solder point above the added text is before the filter and the points below are after the filter.
