A600 v1.5 Cap Map

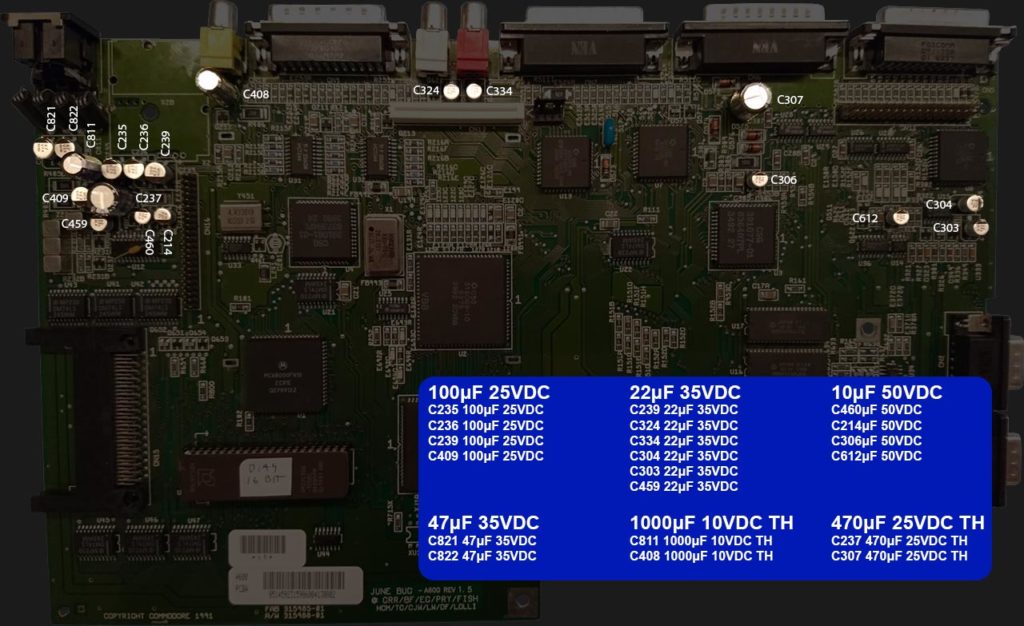

Ok, I admit it. It has been way too long since I posted something new here but it has been a very hectic fall/winter at work. A few project will be put up here but before that I finished a cap-map for the Amiga 600 version 1.5 PCB.┬áSome capacitors are tricky, especially the two 22uF … Continue reading A600 v1.5 Cap Map
